Brief Introduction:

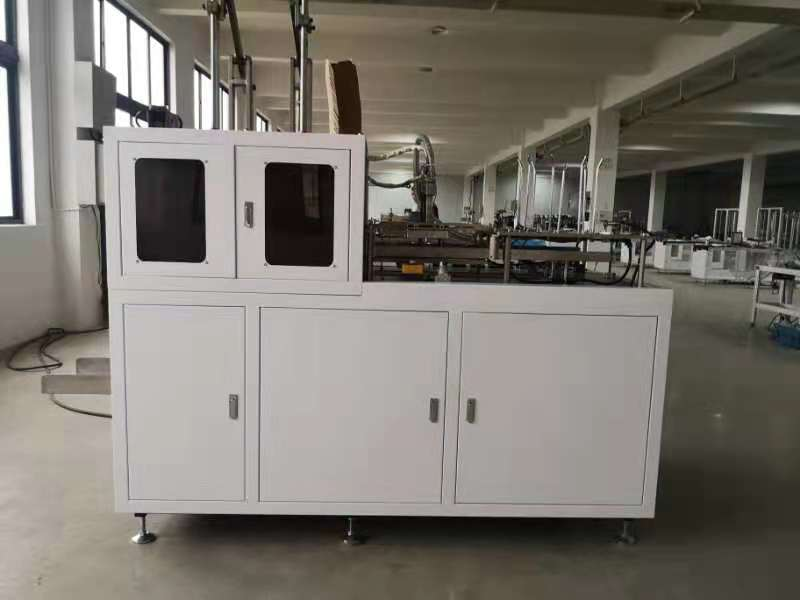

HD-CHL intelligent full automatic paper box forming machine (suitable for single PE coated paper box making)
- HD-CHL intelligent full auto paper box machine : mechanical transmission, speed, energy-saving, stable and simple operation, microcomputer detection and domestic advanced technology products.
- HD-CHL intelligentfull auto paper box machine is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.
- For the production of single-cell disposable paper boxes, paper boxes, food packaging boxes and FBJ-C full auto paper box machine through the automatic feed paper, heating (comes with hot air generating device), hot press molding (adhesive box four corners), automatic points collected, microcomputer control of continuous processes.
- The fastest working speed is 40 times per minute.，it has automatic systems such as feeding monitoring, paper feeding monitoring, forming monitoring, collection monitoring, etc. if the machine fails, it will stop and alarm.

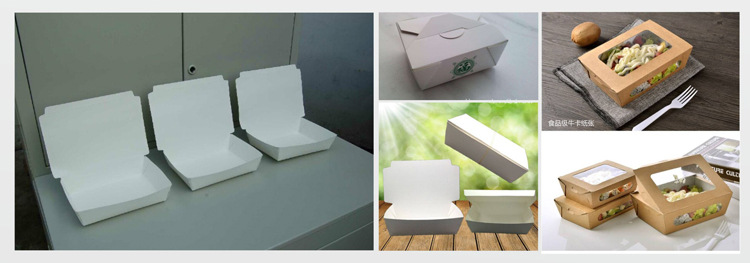

- This machine adopts automatic paper feeding , heating (with hot air device), paper former(sealing box 4 corners), automatic counting & collection , microcomputer controller etc making process ,and fit for making disposable paper meal lunch box , take away boxes, cake boxes etc food package cartons.
Technical Specification:
| Model | HD-CHL |
| Production capacity | 30-50pcs/min |
| Max. Paper feeder size | 480*480mm |
| Max. Paper feeding width | 480mm |
| Suitable material | 100-400g/m2 PE coated paper |
| Total power | 3.5kw |
| Weight | 900kgs |
| Overall dimension | 1900*1600*2500mm(L*W*H) |
| Working air pressure | 0.4-0.5Mpa(need to buy compressor) |
