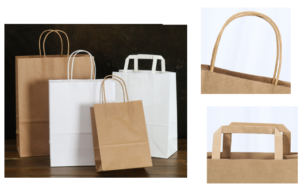

Samples
Properties and uses

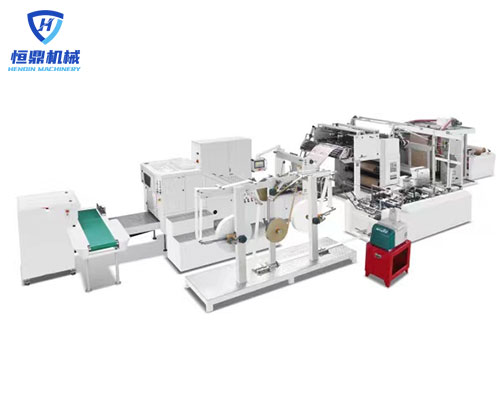

Fully automatic square bottom paper bag machine is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit,pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery. This machine adopts German imported high-speed motion controller (CPU), which controls the operation of servo through high-speed bus to ensure stable movement and smooth motion curve. It is the automatic square bottom paper bag equipment with handles inline preferred by the majority of printing and packaging manufacturers.
Main features
- Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
- Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.
- Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.
- Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
- Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
Technical parameter
| Model | TND-450BTF |
| Cutting length | 380-760mm |
| Cutting length | 380-660mm |
| Bag width | 220-450mm |
| Bag width | 240-450mm |
| Bottom width | 80-220mm |
| Paper Thickness | 80-150g/㎡ |
| Paper Thickness | 80-150g/㎡ |
| Paper roll width | 630-1370mn |
| Paper roll width | 670-1370mm |
| Roll paper diameter | ф1300mm |
| Paper core | ф76mm |
| Patch length | 190mm |
| Patch width | 50mm |
| Handle length | 350mm |
| Handle distance | 95mm |
| Rope diameter | Ф3-5mm |
| Patch paper roll width | 100mm |
| Patch paper roll diameter | ф1200mm |
| Patch paper thickness | 100-135g/㎡ |
| Production speed for bags without handles | 30-150bags/min |
| Production speed for bags with handles | 30-120bags/min |
| Flat rope making machine requirements | |
| Flat rope distance | 84mm |
| Flat Rope Width | 12mm |
| Flat rope height | 100mm |
| Patch Width | 40-50mm |
| Patch Length | 190mm |
| Flat Rope Length | 352mm |
| Patch Feeding Width | 80-100mm |
| Material thickness | 120g/㎡ |
| Handle roll diameter | 1200mm |
| Paper Bag With Flat rope speed | 30-120pcs/min |
| Paper bag speed | 30-150pcs/min |

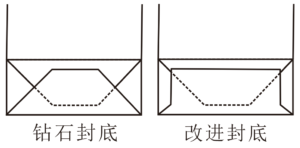

| Bottom folding type |  |
| Cutting knife | Sawtooth cutting |
| Working Air Current | More than 0.36m³/ minutes, 0.5-0.8 MPa |
| Machine weight | 21T |
| Machine size | 16200x8000x2500mm |
| Power Supply | 380V 3Phase 48KW |
